PNK SP 0025 Single stage rotary vane vacuum pump
Single stage rotary vane vacuum pump with excellent performance and reliability
Motor power(50Hz): 0.75Kw
Pumping speed (50/60Hz): 25m³/h/30m³/h
Limit vacuum: 0.5mbar
Would you like to know more？
Please contact us directly(China PRONOTEK）：
Download product sheet
PNK SP Series Single stage rotary vane pump Performance advantage
Specification parameters
| Technical parameter | Unit | Frequency | PNK SP 0025 |
|---|---|---|---|
| Pumping speed | m3/h | 50 Hz | 25 |
| 60 Hz | 30 | ||
| Limit vacuum | mbar | 50 Hz | 0.5 |
| Nomimal size | 50 Hz | G3/4 | |
| Voltage | V | 50 Hz | 220-240/380-415 |
| 60 Hz | 220-280/380-440 | ||
| Power | Kw | 50 Hz | 0.75 |
| Current | A | 50 Hz | 3.0/1.75 |
| 60 Hz | 3.6/2.1 | ||
| Speed | r/min | 3000/3600 | |
| Noise | (ENISO2151) | dB(A) | 62 |
| Oil filling quantity | L | 0.5 | |
| Weight | kg | 19 |

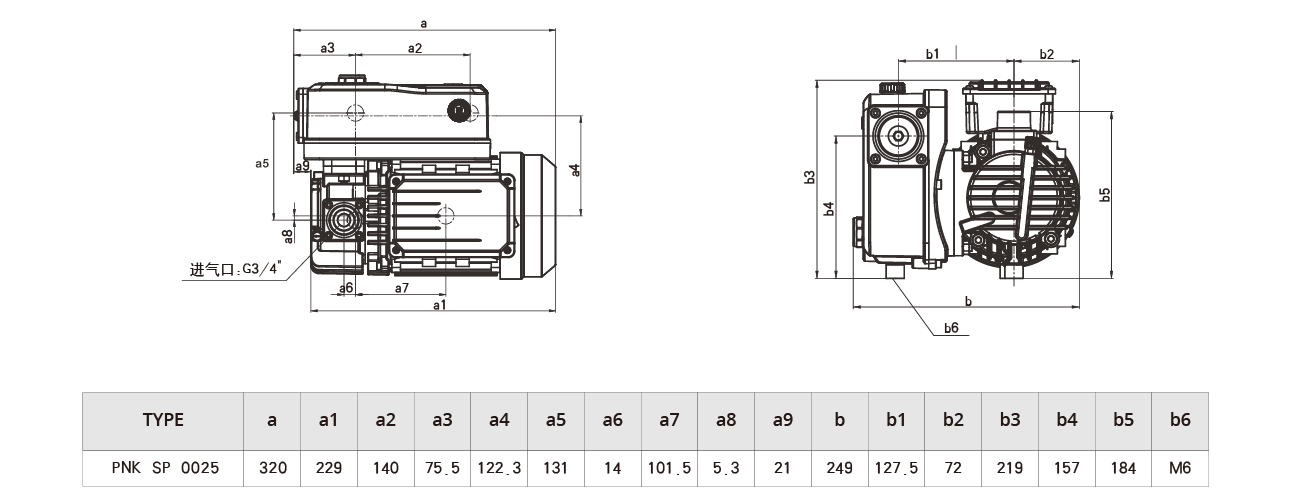

Mounting dimensions
Performance curve
Parts
