PNK DP 020C double stage vane vacuum pumps
Excellent and reliable double - stage rotary vane vacuum pump
Motor power(50Hz): 0.75Kw
Pumping speed (50/60Hz): 20m³/h/24m³/h
Limit vacuum: 5.0×10-3mbar
Would you like to know more？
Please contact us directly(China PRONOTEK）：
Download product sheet
PNK DP-C series double stage rotary vane pump Performance advantage
Specification parameters
| Technical parameter | Unit | Frequency | PNK DP 020C |
|---|---|---|---|
| Pumping speed | m3/h | 50 Hz | 20 |
| 60 Hz | 24 | ||
| Limit partial pressure | mbar | 50 Hz | 7.0×10-4 |
| Limit total pressure | mbar | 50 Hz | 5.0×10-3 |
| Open limit total pressure | mbar | 50 Hz | 2.0×10-4 |
| Water vapor permitted tolerance | mbar | 50 Hz | 20 |
| Nomimal size | DN（mm） | 50 Hz | KF25 |
| Voltage | V | 50 Hz | 220-240/380-415 |
| 60 Hz | 220-280/380-440 | ||
| Power | Kw | 50 Hz | 0.75 |
| Current | A | 50 Hz | 1.75/1.15 |
| 60 Hz | 2.10/1.38 | ||
| Speed | r/min | 50 Hz | 1400/1410 |
| 60 Hz | 1680/1710 | ||
| Sound | (ENISO2151) | dB(A) | 64 |
| Oli | L | 1.5 | |
| Weight | kg | 32 |

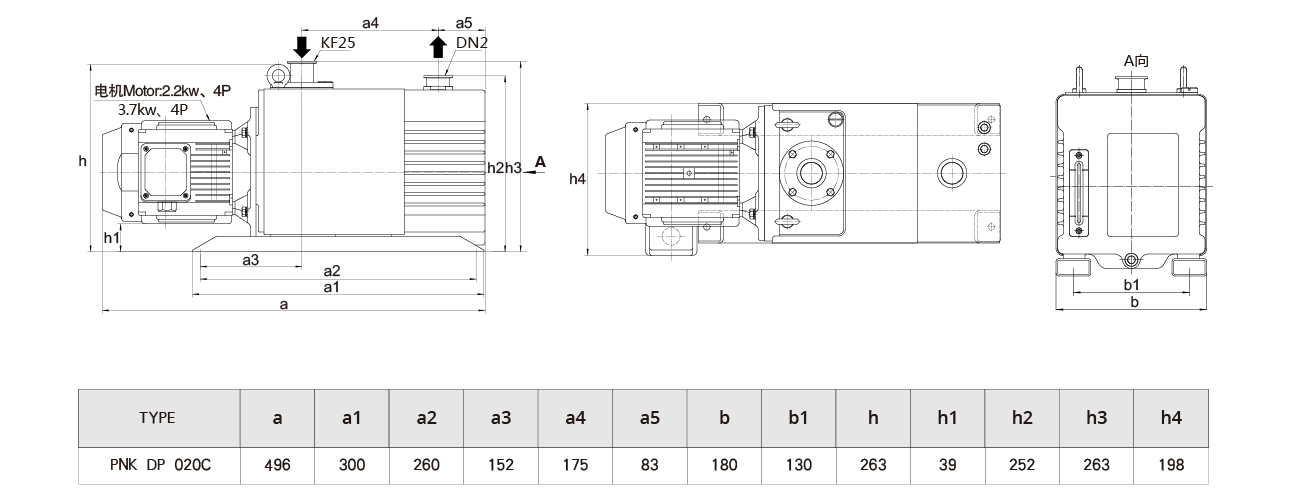

Mounting dimensions
Performance curve
Parts
